Male Washroom — Health Club

Health-club washroom · Academic project

Interior & Services Design

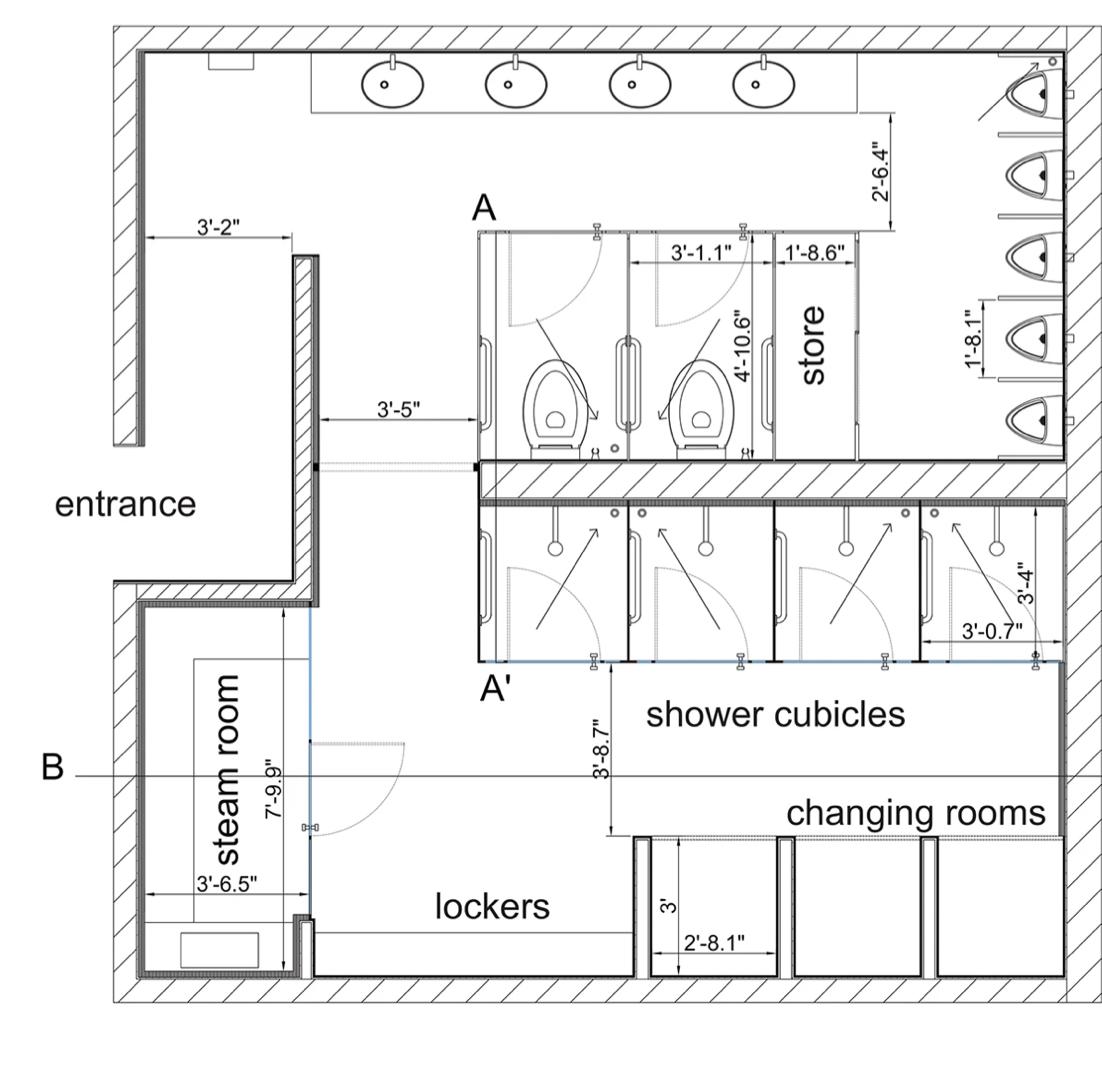

Dimensioned 1:20 floor plan of the male washroom: entrance, WCs, urinals, showers, changing rooms, lockers, and steam room, every dimension string printed.
Plan — 1:20

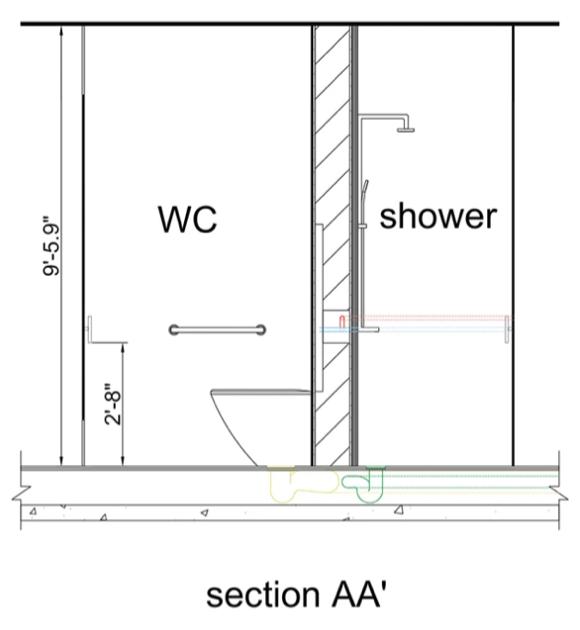

Section AA′ through a WC and shower cubicle, drawn at 1:20 with a 9′-5.9″ clear height and a 2′-8″ grab-rail height.
Section AA′
Type
Health-club washroom
Area
391 sq ft
Scale
1:20, all drawings
Services
Kohler · Daikin · Racold · Jaquar

A health-club washroom is the pause between exertion and ease. This project resolves a compact 391 sq ft plate into a clean sequence — from the active, “dry” zone of basins and urinals into the humid “wet” world of showers, steam and rest. A single wooden divider does the organising work, zoning the plan without walling it off and warming an otherwise hard palette.

Program

Program — 391 sq ft · 1:20

  • Urinals5
  • WCs2
  • Sinks4
  • Shower cubicles4
  • Changing rooms3
  • Lockers18
  • Steam suite1 room, with dedicated store
  • CirculationTight, fully dimensioned

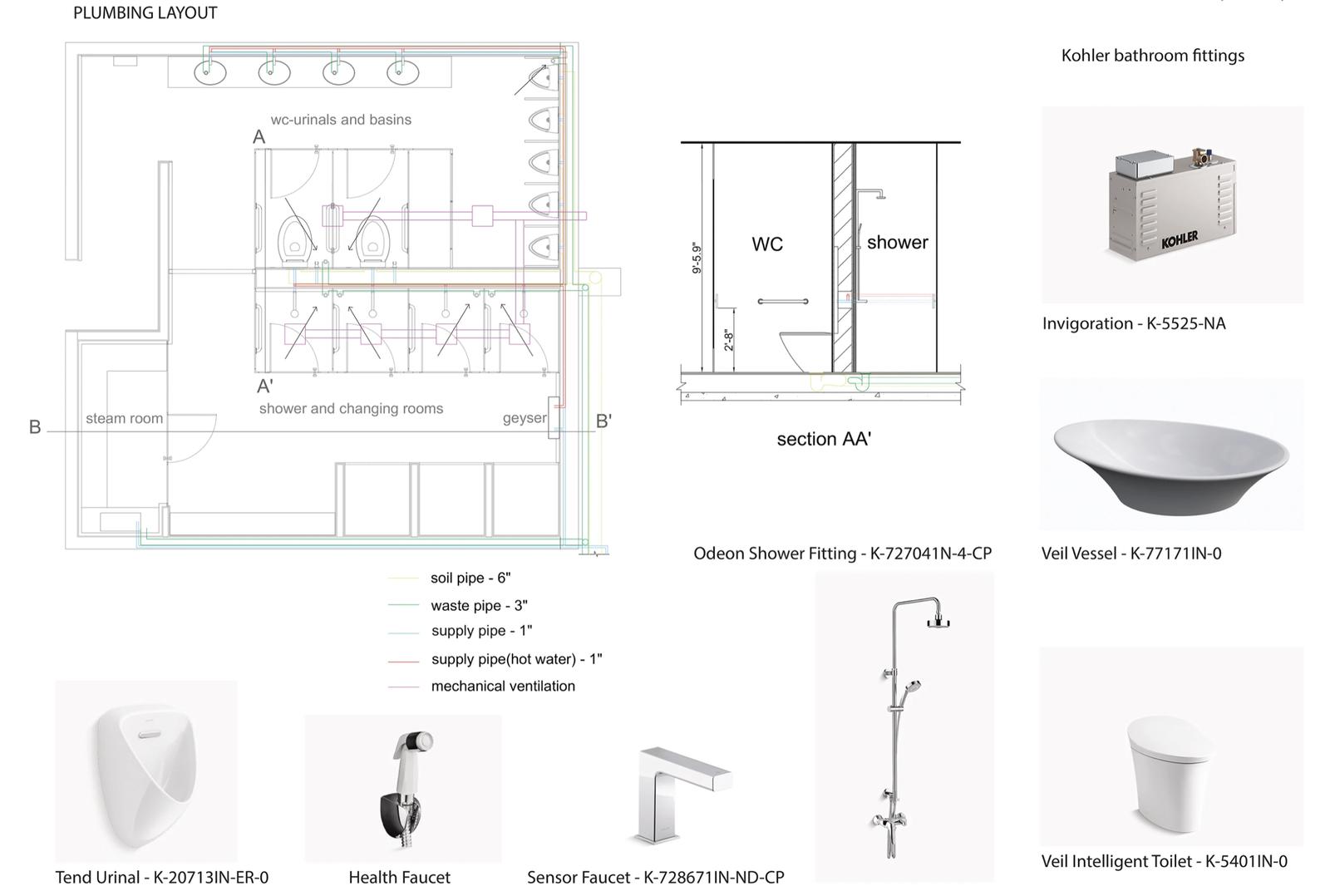

Male washroom — health club: 1:20 plumbing layout with section AA′ and the Kohler fixture schedule

Plumbing

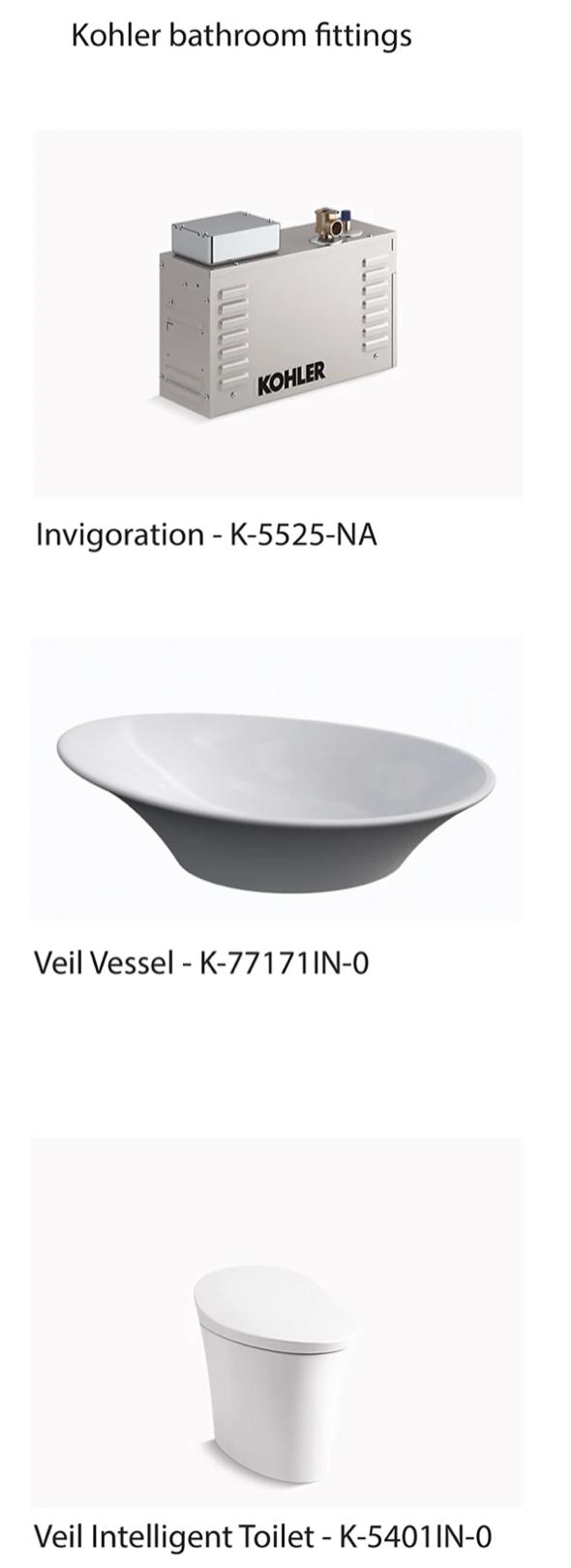

Plumbing. Fully coordinated supply, waste and ventilation, fitted out in a single Kohler family — Tend urinals, Veil toilets and basins, sensor and health faucets, Odeon showers and a Kohler Invigoration steam unit.

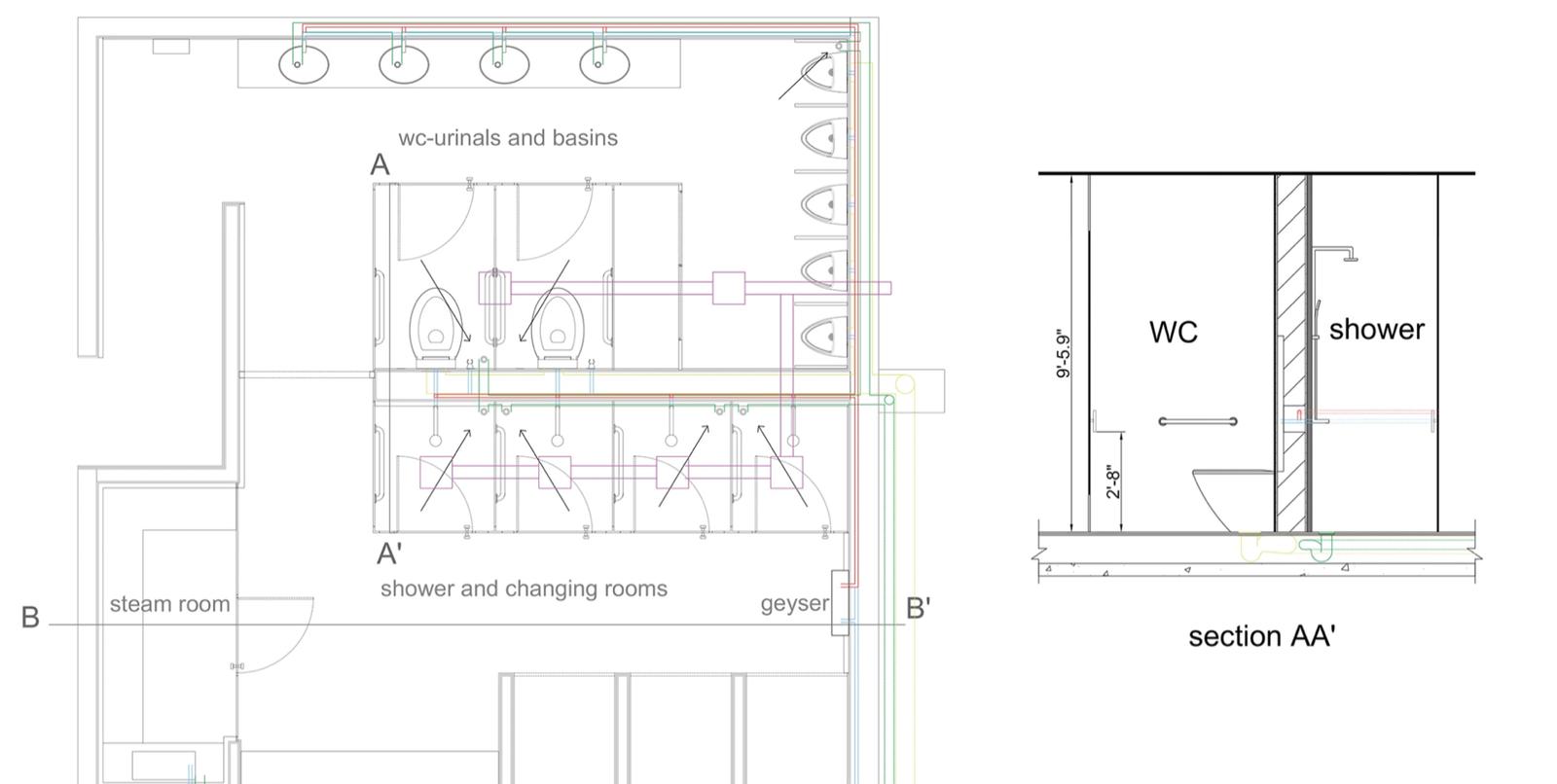

The plumbing sheet — pipe runs sized on the plan (4″ soil, 3″ waste), section AA′ through the wet wall, and every fixture scheduled by Kohler model number.

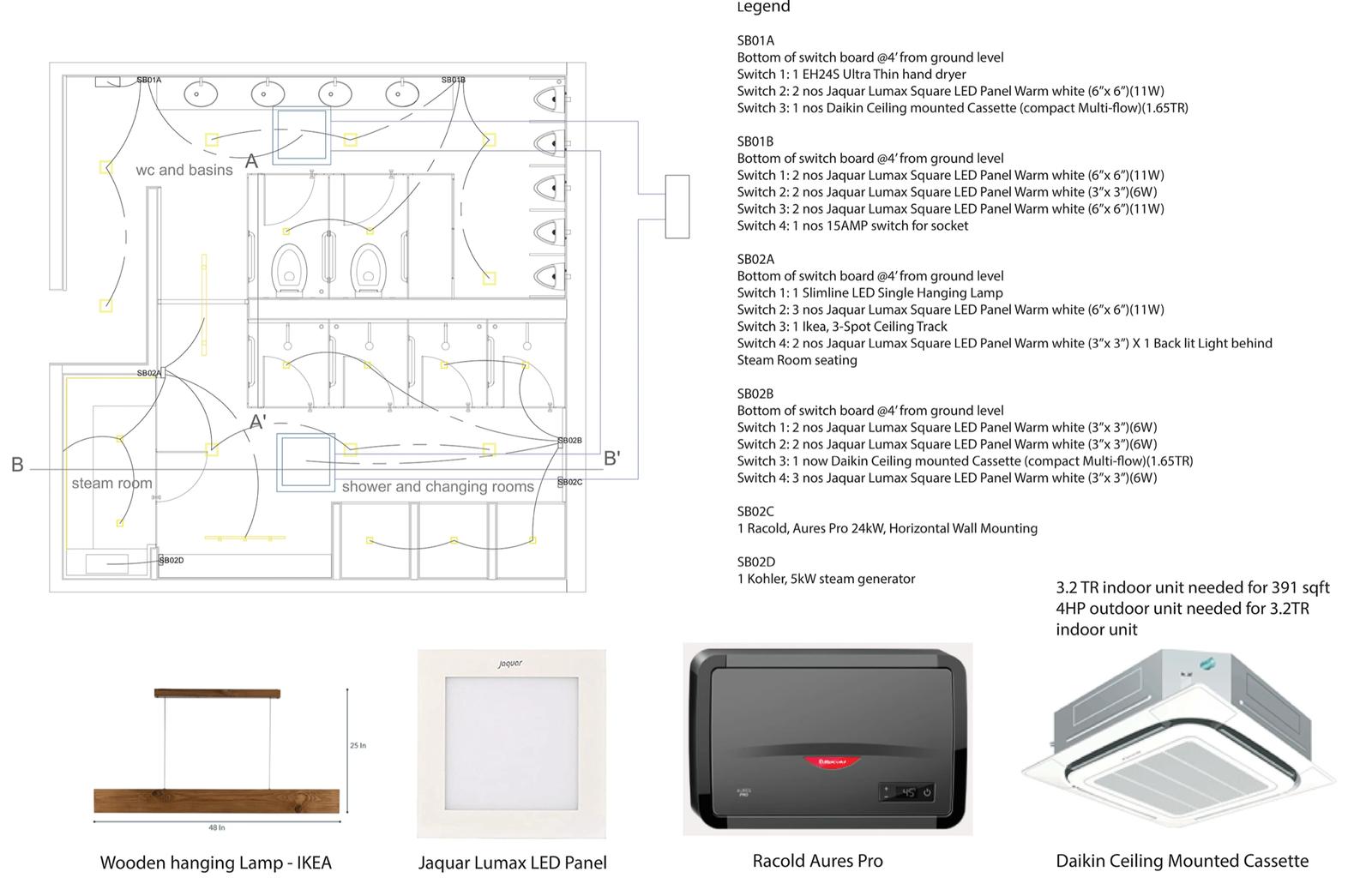

Male washroom — health club: electrical layout with circuit legend and fitting schedule

Materiality & Electrical

Materiality. A tactile, spa-like palette — 12mm porcelain and 40mm slatestone, warmed by timber and offset by durable plastic where hygiene demands it.

Electrical. Warm-white Jaquar Lumax LED panels layered across zones from six switchboards, punctuated by a hanging lamp, a spot track, and a back-lit detail behind the steam seating. Climate and services run on a Daikin cassette (3.2TR/4HP), a Racold 24kW heater and a Kohler 5kW steam generator.

The electrical sheet — a circuit-by-circuit switchboard legend, and the fittings drawn to placement, down to the hanging lamp and the 3.2TR cassette.

A service-heavy space designed to feel effortless — every pipe and panel resolved behind a calm, material-led experience.

Moodboard

  • Sample of dark grey porcelain tile from the washroom palette. Porcelain Tiles 12mm
  • Sample of grey slatestone tile from the washroom palette. Slatestone tiles 40mm
  • Sample of warm-toned wood plank from the washroom palette. Wood
  • Sample of matte black plastic from the washroom palette. Plastic 12.7mm

Keywords

  • Tactile
  • Spa-like
  • Warmed by timber
  • Durable
